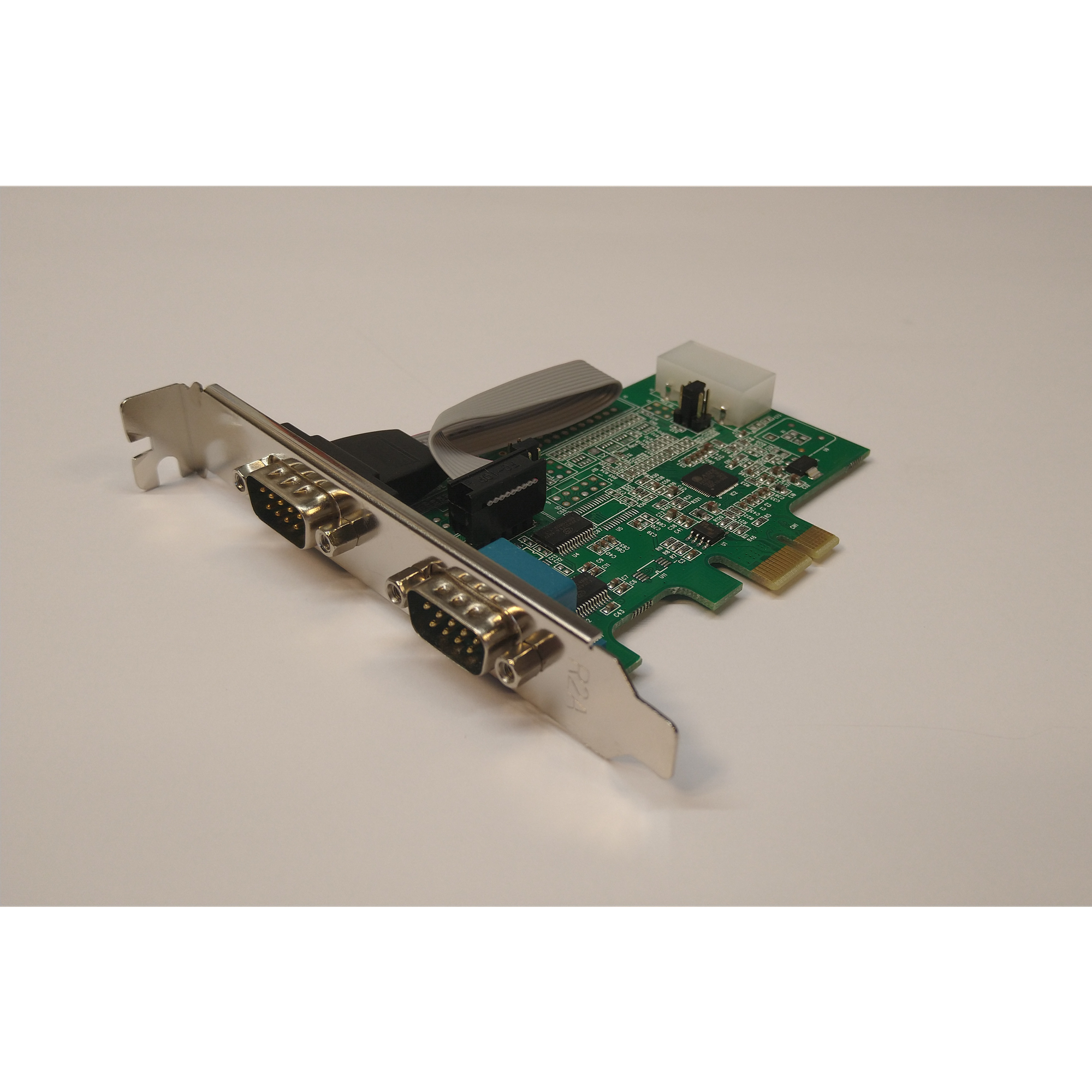

Type Controller: Serial
Card Interface: PCI-e x1
Chipset: PLX/Oxford – OXPCIe952
Connections:
- External: 2x DB-9 (9-pins, D-Sub, serial)
- Internal: 1x LP4 (4 pin, Large Drive Power)
Performance:
- Serial Protocol: RS-232
- Max Baud Rate: 460.8 Kbps
- Data Bits: 4, 5, 6, 7, 8
- FIFO: 128 Bytes
- MTBF: 87,600 Hours
Operating Temperature: -10°C to 80°C (14°F to 176°F)
Note: Selectable power output on pin 9 of the serial port

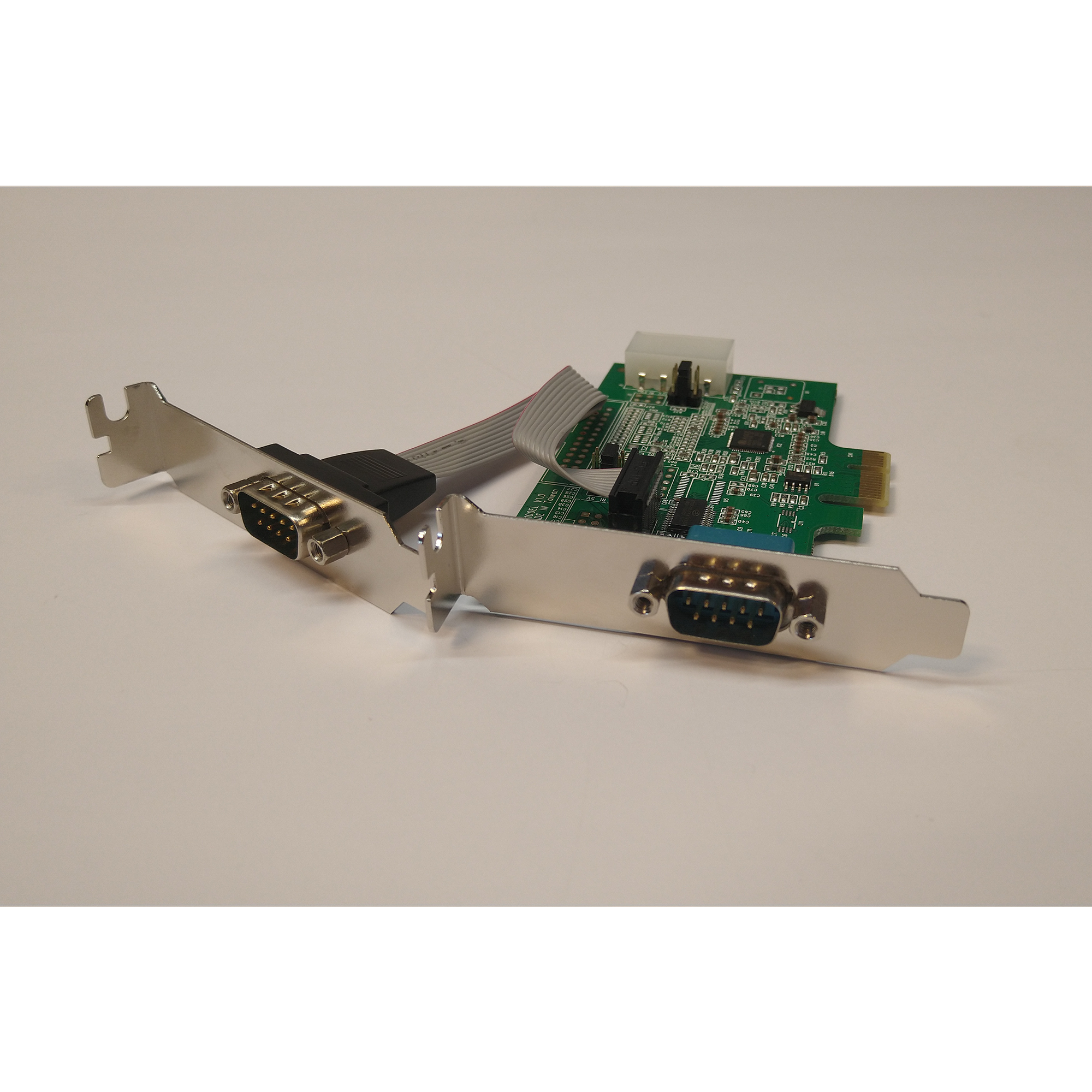

Slots: 1 (2 in low profile mode)
Other: Low Profile brackets included
